MRCOOL® DIY 4th Gen Mini Split 2 Zone 24,000 BTU 22 SEER Ductless Air Conditioner and Heat Pump with 12K 12K Air Handlers and Install Kits

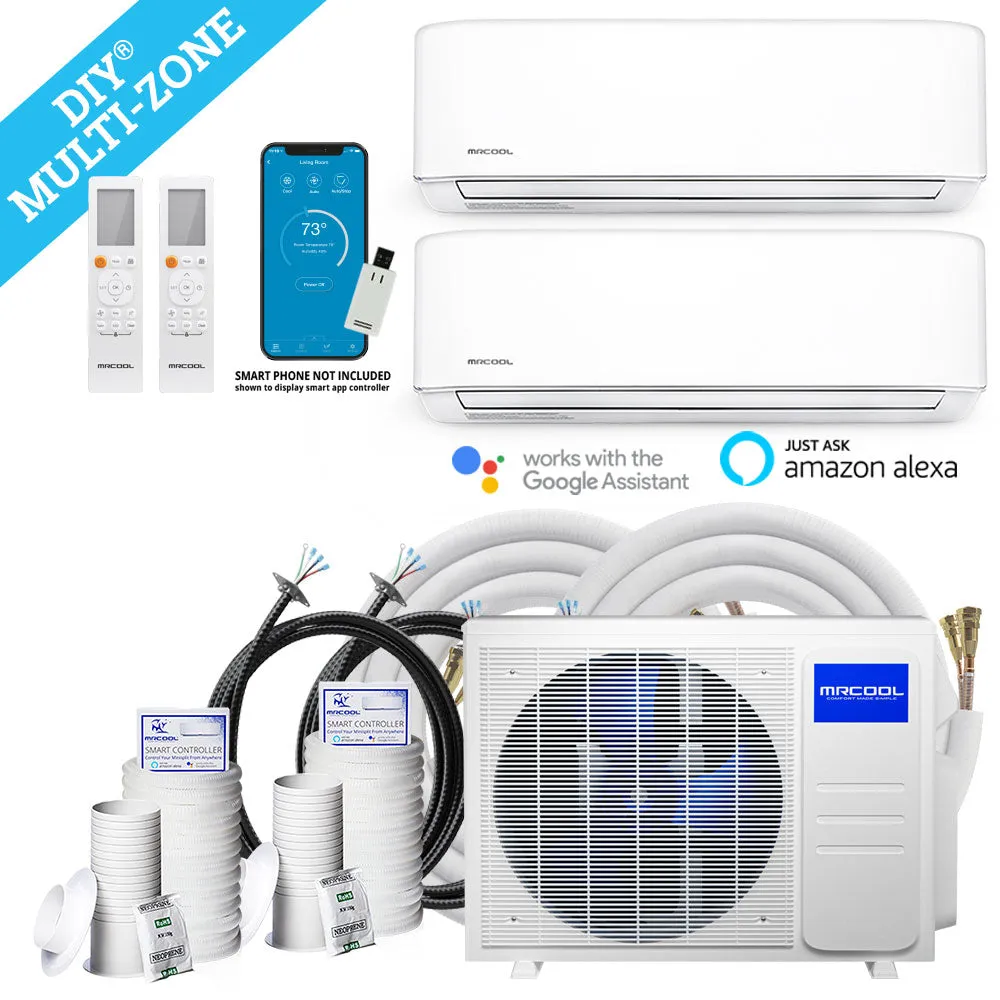

The new 4th Generation MRCOOL® DIY Mini Split includes everything you need to cool and heat two different rooms. You'll be sent the MRCOOL DIY 27,000 BTU Multi-Zone Condenser, two MRCOOL 12,000 BTU Wall Mounted Air Handlers, two MRCOOL Remotes, two MRCOOL Installation Kits, FREE Condenser Wall Mounting Brackets, and the best part about this system is that you can install it all by yourself!

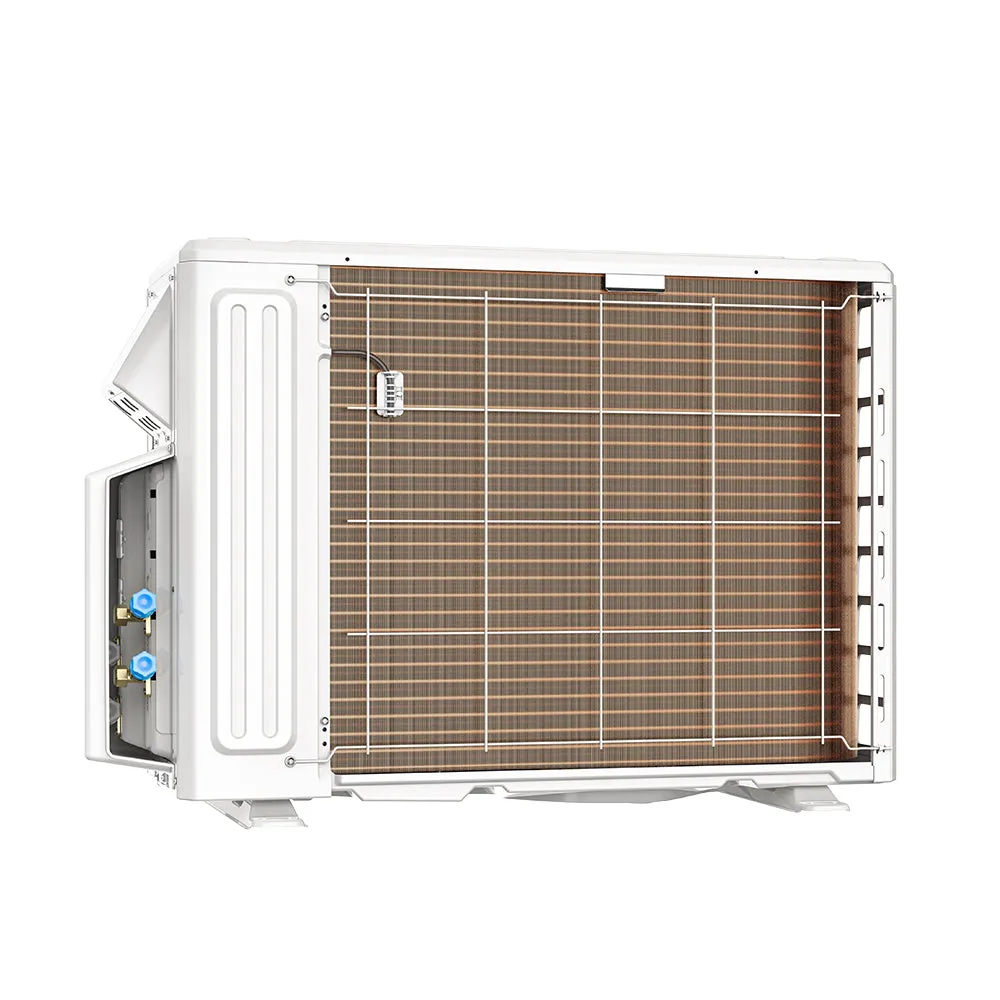

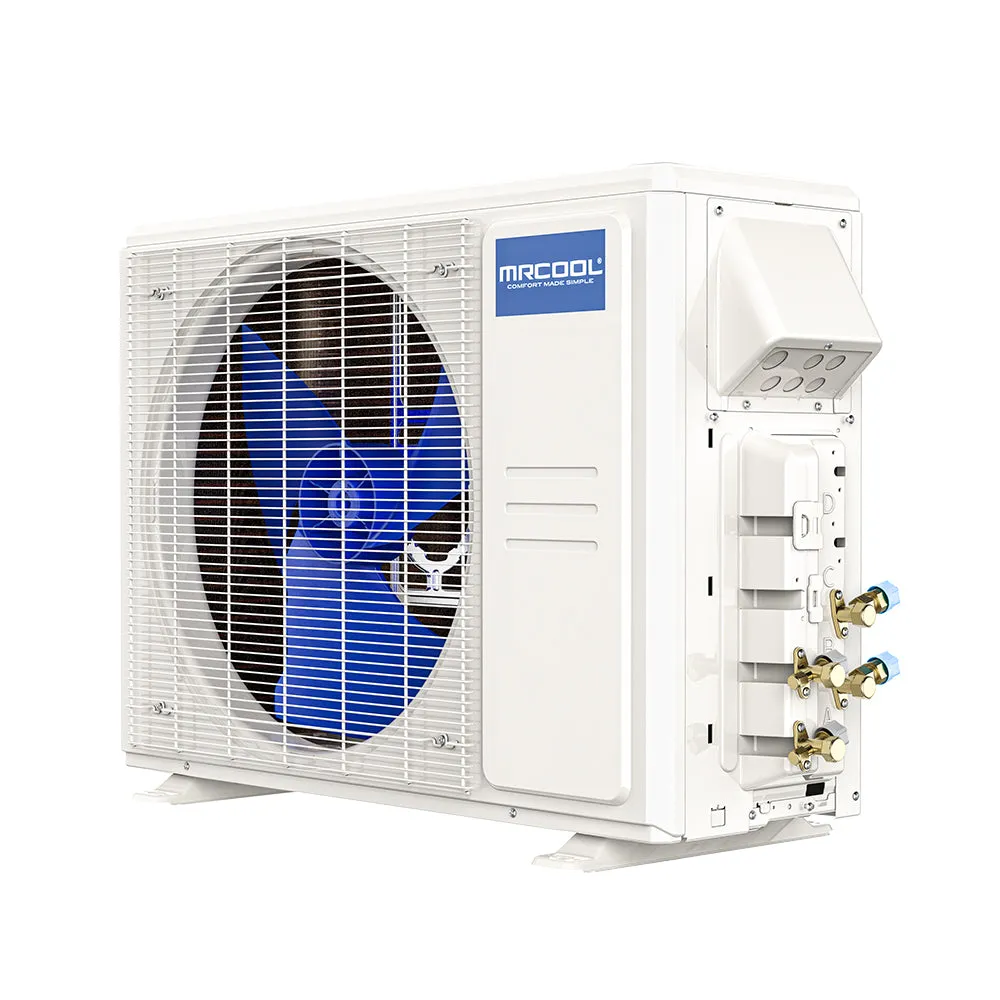

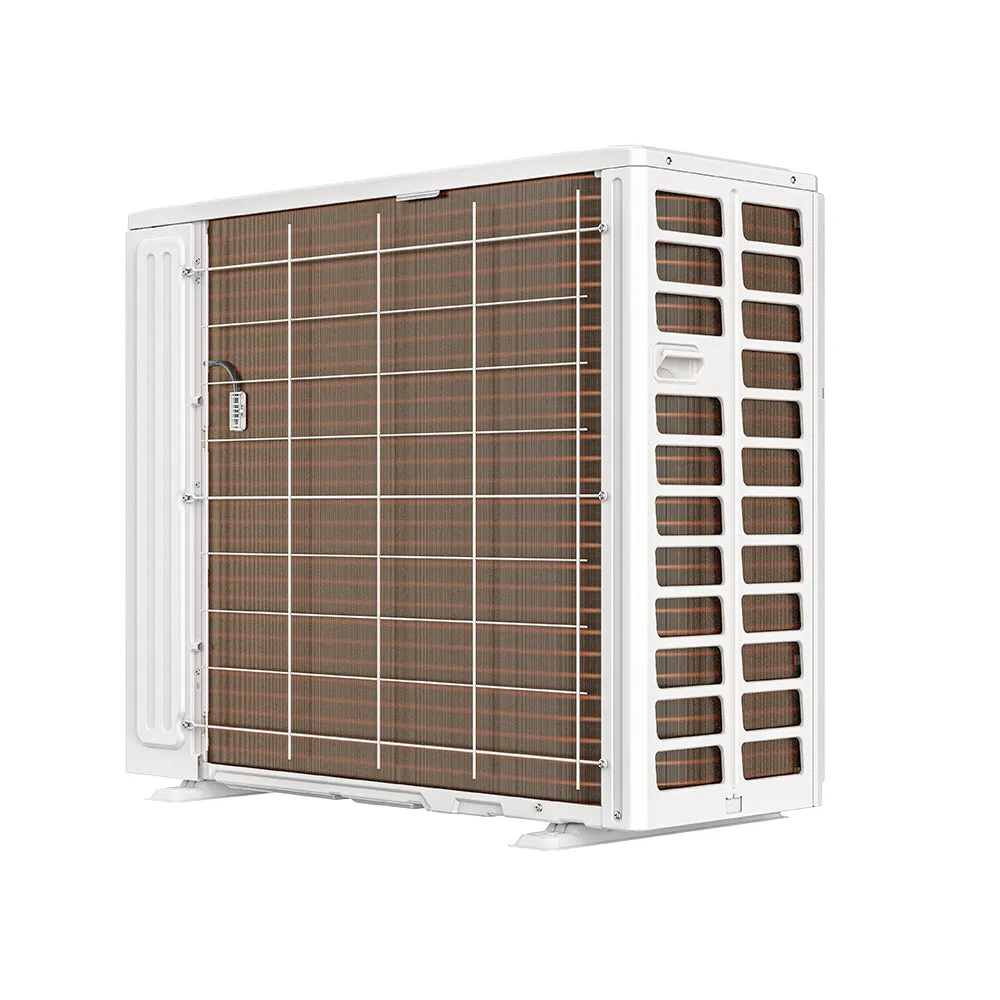

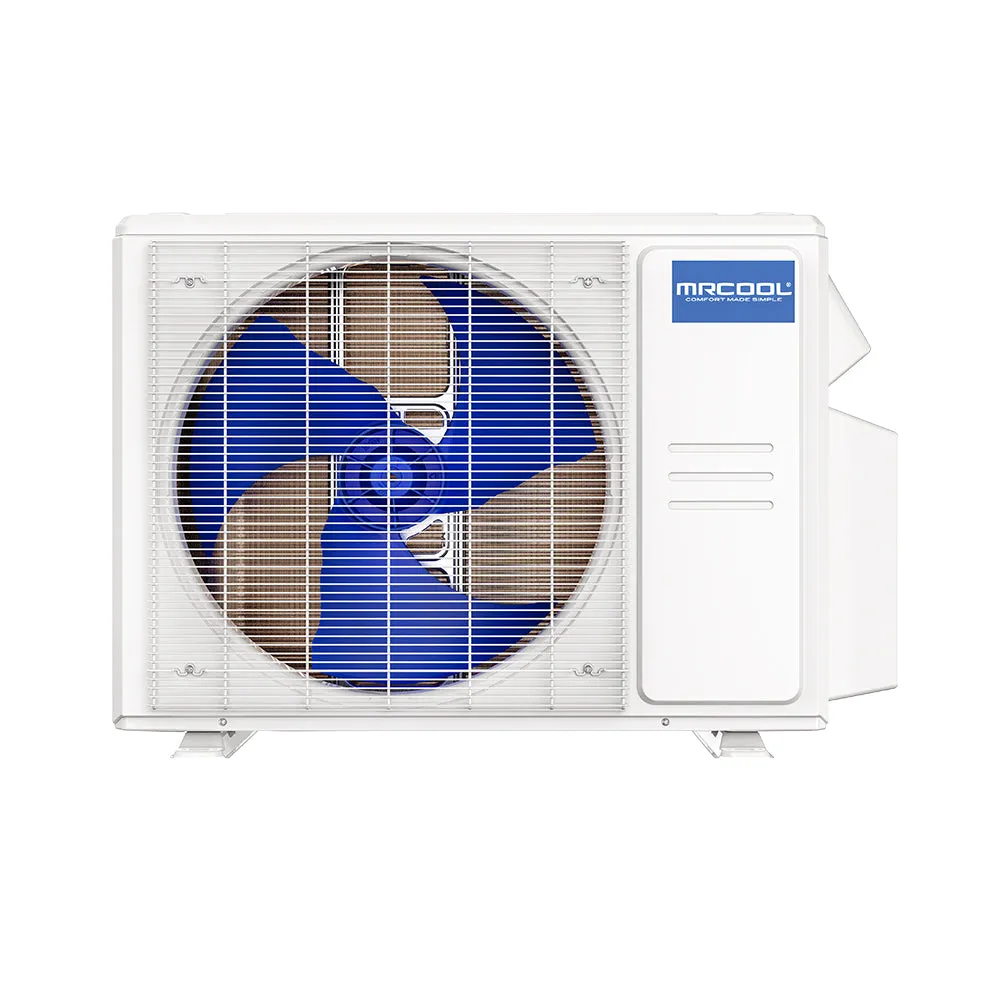

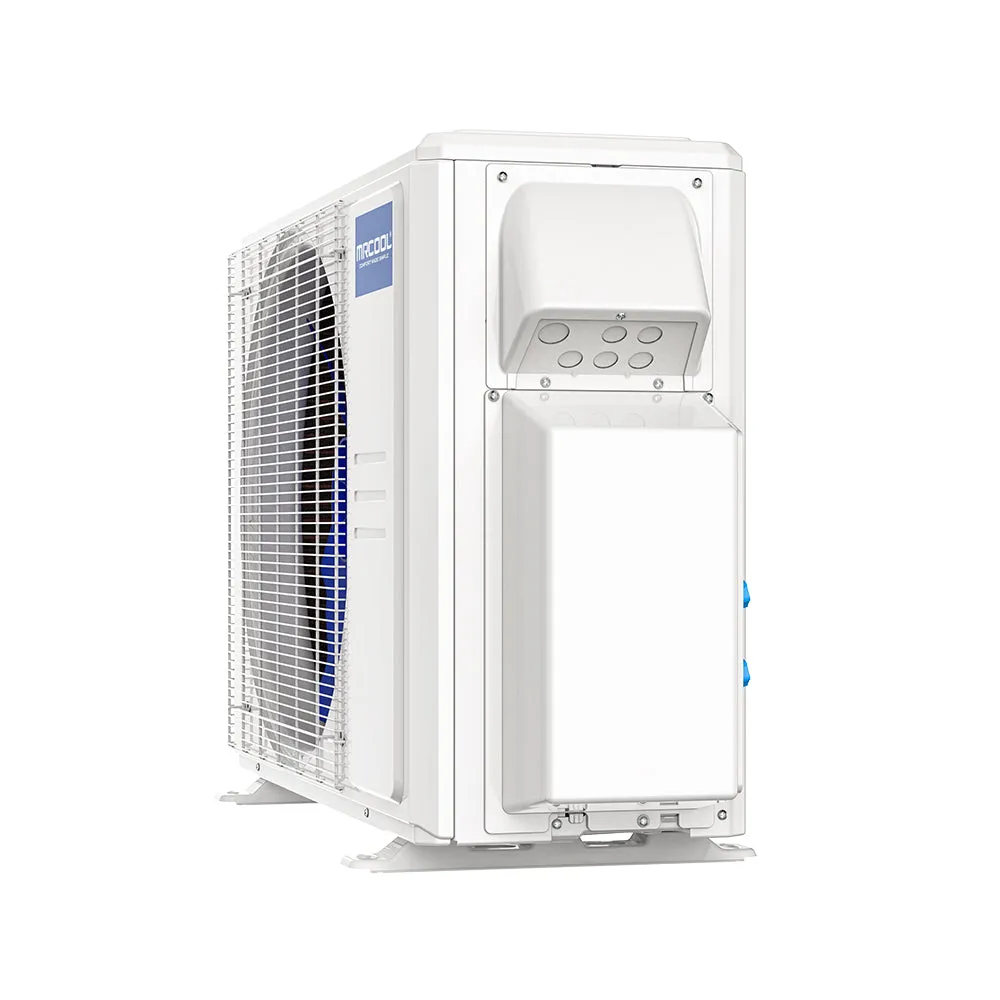

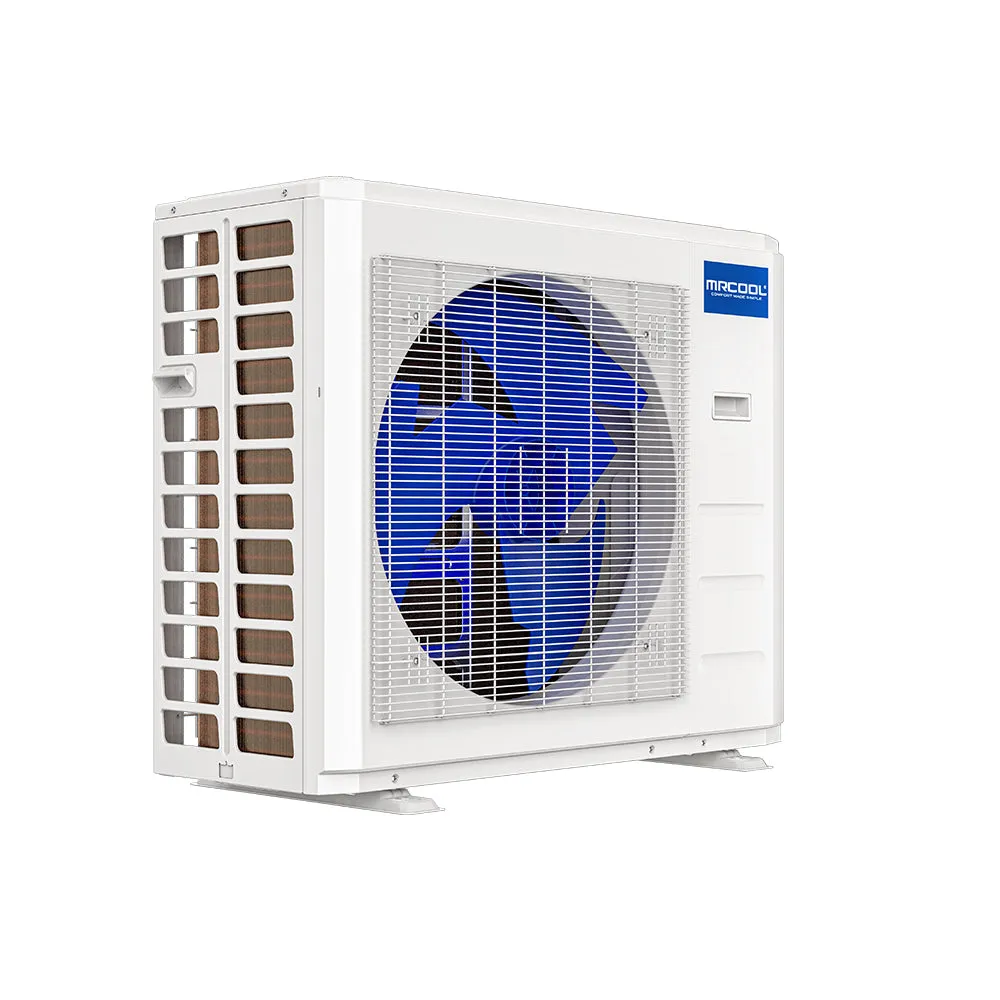

Condenser Features:
- Up to 22 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long-term corrosion
- Energy-Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- Line sizes 1/4”, 1/2” & 3/8”, 5/8”
- Multi-Zone Condenser includes adapters for the air handlers (3/8", 5/8" Line Size) - see liquid line and suction line size columns

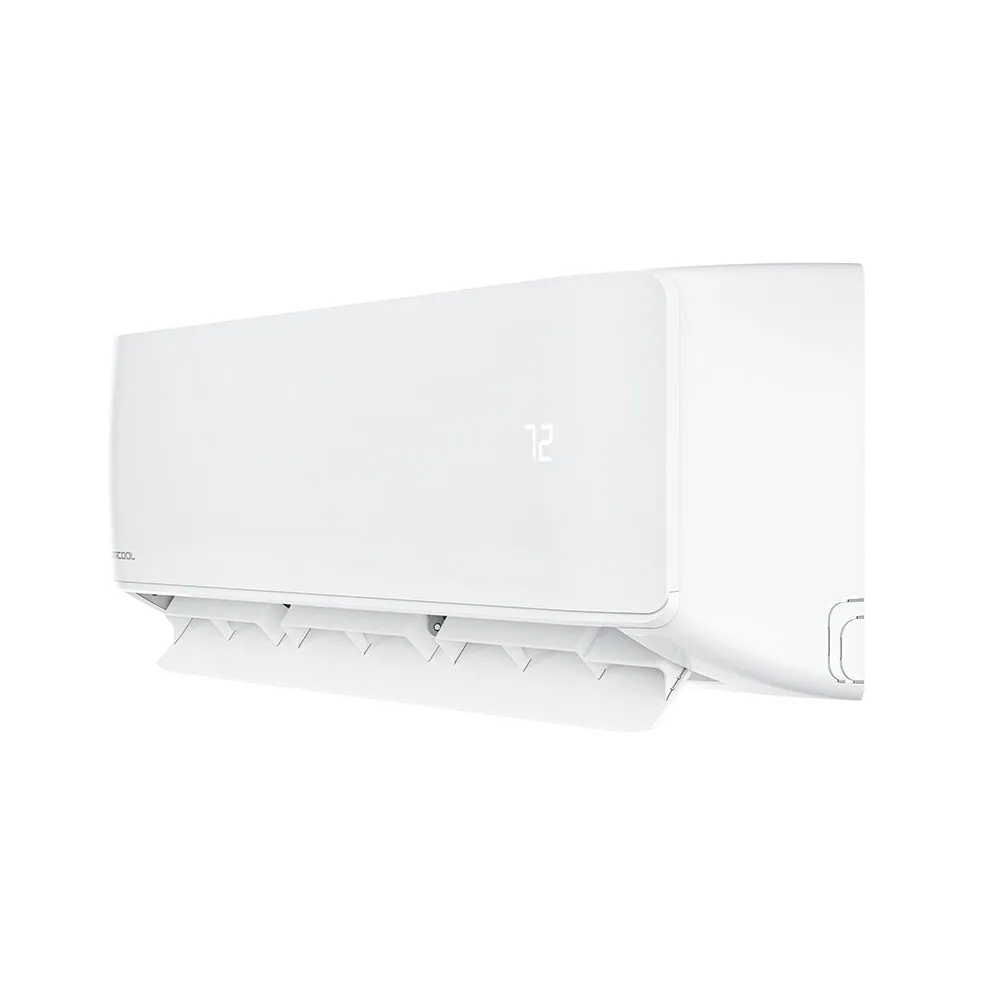

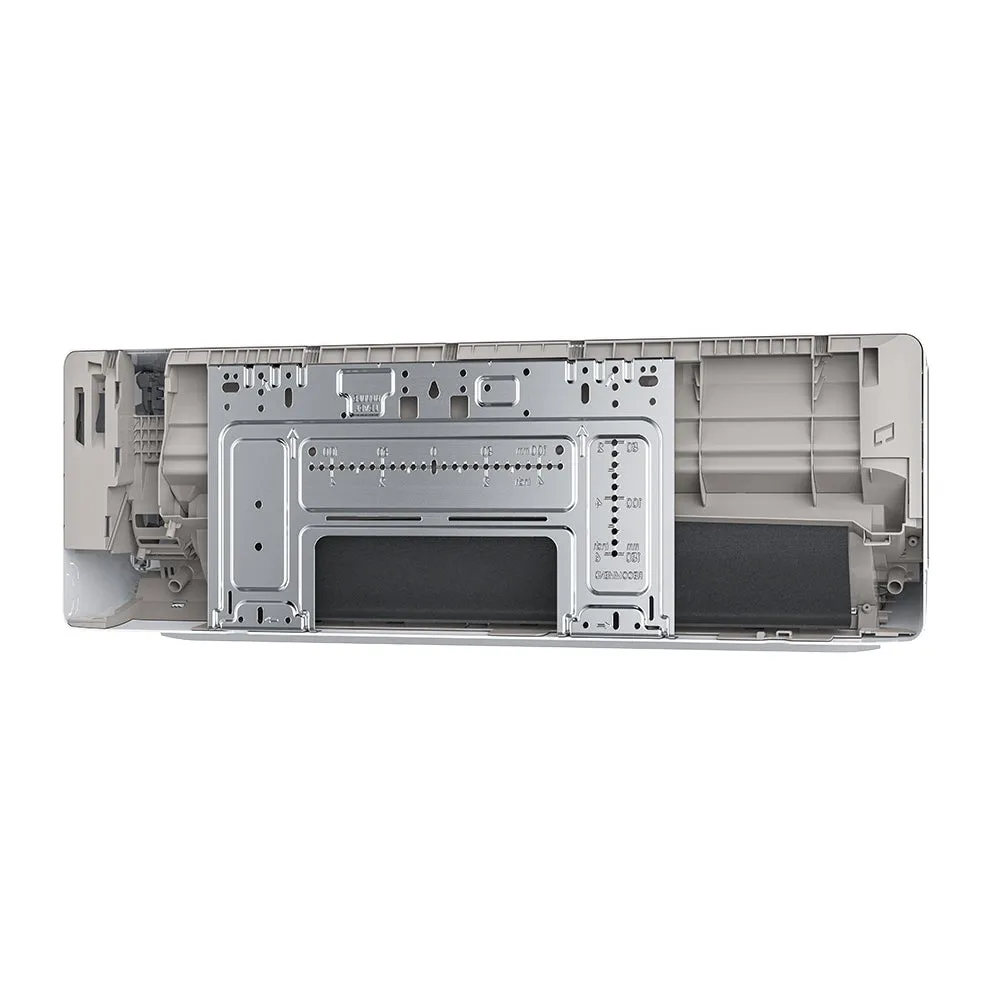

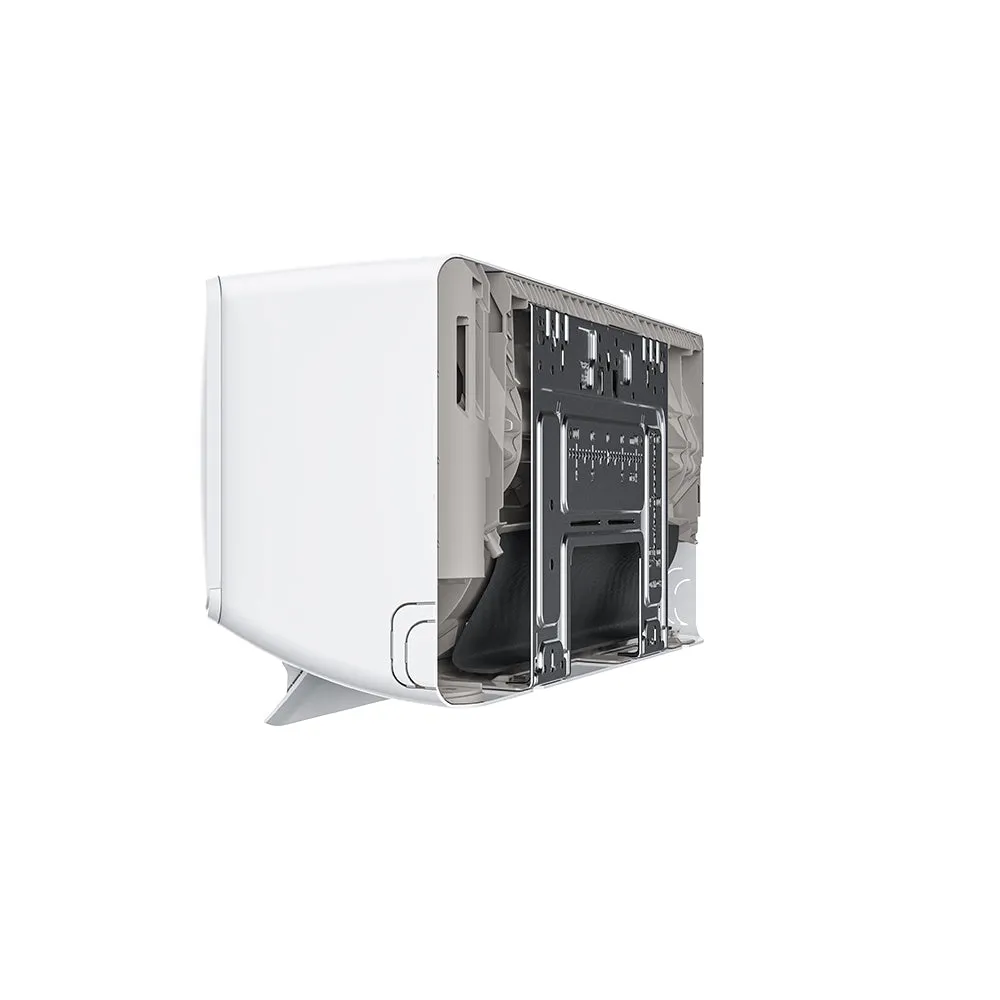

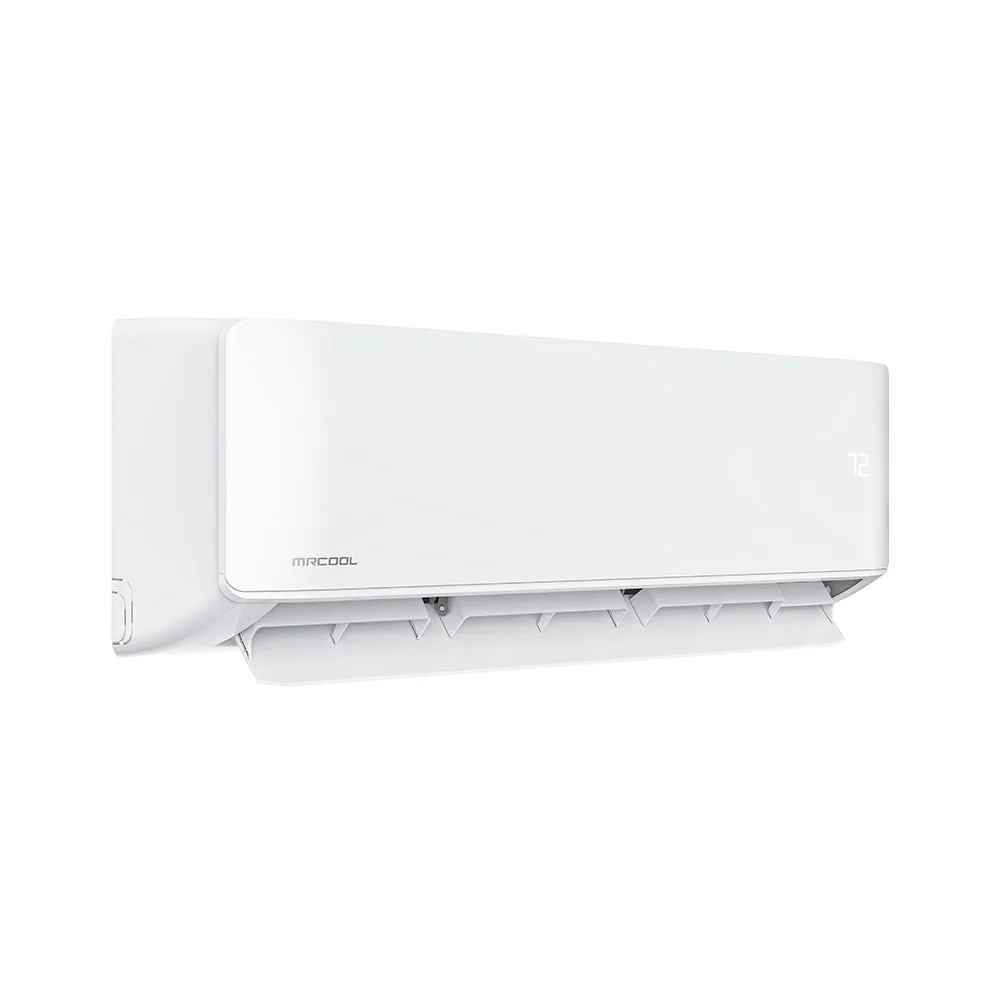

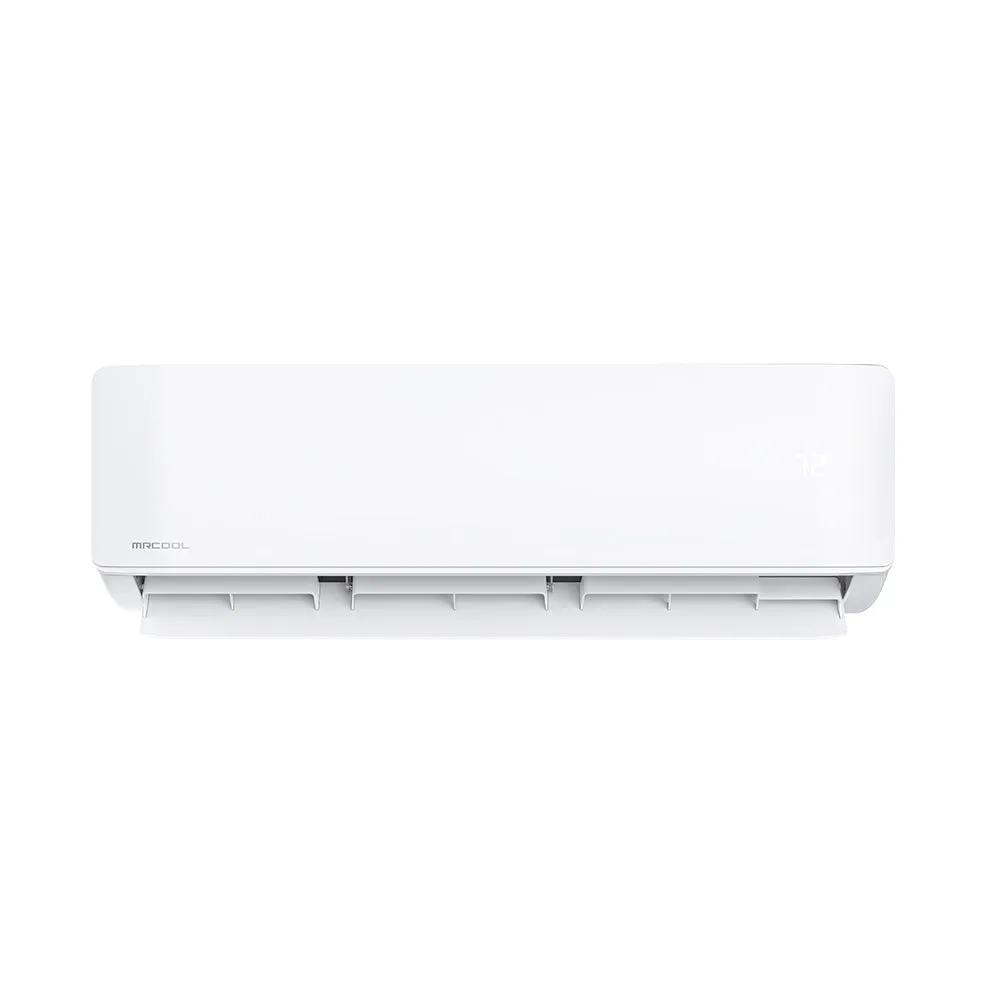

12K Air Handler Features:
- Large Coverage Area. Air Handler covers an area of up to 500 sq. ft.
- SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- Compatible with Amazon Alexa and Google Assistant
- Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

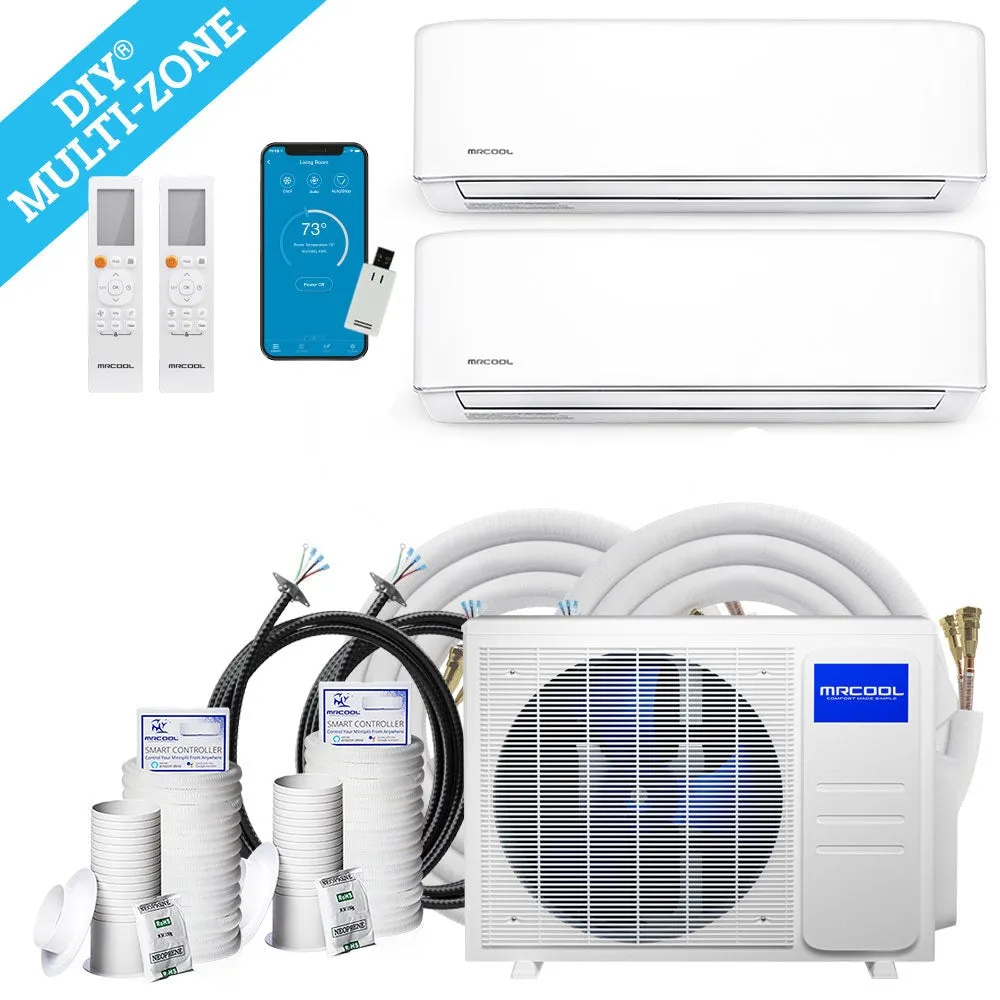

What's Included:
- 1x Condenser
- 2x Air Handlers
- 2x Line Sets
- 2x Remote Controls
- 1x FREE GIFT: Free Condenser Wall Mounting Brackets ($119.99 Value)
Condenser Specifications:
| MODEL | DIY-MULTI3-27HP230C |
| SEER | 22 |
| EER | 12 |
| HSPF | hspf4/hspf5 : 10.3/8.2 |
| CFM | 2129.41 |
|
COOLING CAPACITY |
27000 BTU |
|
HEATING CAPACITY |
27000 BTU |
|
VOLTAGE |
208-230 V |
| PHASE | 1 |
| CYCLE | 60 Hz |
|
MAX FUSE BREAKER |
40 A |
|
MIN CIRCUIT AMPACITY |
26 A |
| COLOR | White |
|
COLOR FAMILY |
White |
|
ZONE CAPACITY |
Up to 3 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME |
91.71 oz |
|
DECIBEL RATING |
61 dBA |
| INVERTER | Yes |
|
MIN AMBIENT COOL |
5F ~ 122F |
|
MIN AMBIENT HEAT |
-13F ~ 75.2F |
|
MAX LINESET LENGTH |
172 ft TOTAL |
|
LIQUID LINE SIZE |
1/4in |
|
SUCTION LINE SIZE |
1/2in |
|
COMPRESSOR MOTOR TYPE |
Twin - Rotary |
|
CONDENSER FAN MOTOR RPM |
1050/900/850 |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REGISTERED WARRANTY |
Limited Lifetime Compressor |
|
BASE WARRANTY |
5-year Parts/7-year Compressor |
|
BASE PARTS WARRANTY |
5-year Parts |
|
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
|
BASE COMPRESSOR WARRANTY |
7-year Compressor |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH |
16.14 in |
|
NET HEIGHT |
31.89 in |
|
NET WIDTH |
37.24 in |
|
NET WEIGHT |
139.99 lbs |
|
GROSS DEPTH |
19.88 in |
|
GROSS HEIGHT |
35.04 in |
|
GROSS WIDTH |
42.91 in |
|
GROSS WEIGHT |
157.19 lbs |
12K Air Handler Specifications:
| MODEL | DIY-12-HP-WMAH-230C25 |
|
COOLING CAPACITY |
12000 BTU |
|
HEATING CAPACITY |
12000 BTU |
|
VOLTAGE |
208-230 V |
| PHASE | 1 |
| CYCLE | 60 Hz |
|
MAX FUSE BREAKER |
15 A |
|
MIN CIRCUIT AMPACITY |
3 A |
| MOUNT TYPE |
Wall |
| COLOR | White |
|
COLOR FAMILY |
White |
|
MAX COVERAGE AREA |
Up to 500 sqft |
|
REFRIGERANT TYPE |
R-410A |
|
DECIBEL RATING |
35 dBA |
|
DECIBEL RATING LOW |
25 dBA |
|
DECIBEL RATING HIGH |
40 dBA |
| INVERTER | Yes |
|
LIQUID LINE SIZE |
1/4 in |
|
SUCTION LINE SIZE |
1/2 in |
|
BLOWER MOTOR RPM |
1050/850/650 |
| FAN ONLY OPTION |
Yes |
|
QUIET MODE |
Yes |
|
AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Limited Lifetime Compressor |
|
BASE WARRANTY |
5-year Parts/7-year Compressor |
|
BASE PARTS WARRANTY |
5-year Parts |
|
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
|
BASE COMPRESSOR WARRANTY |
7-year Compressor |
|
HAS BATTERIES |
Yes |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
RESTRICTED STATES |
GU;PR;VI |
|
NET DEPTH |
7.44 in |
|
NET HEIGHT |
11.69 in |
|
NET WIDTH |
31.57 in |
|
NET WEIGHT |
23.81 lbs |
|
GROSS DEPTH |
16.34 in |
|
GROSS HEIGHT |
13.98 in |
|
GROSS WIDTH |
36.02 in |
|
GROSS WEIGHT |
34.39 lbs |
